Experimental setup

This page describes the thermal test bench driven by an Arduino Nano ESP32 through the Telemetrix WiFi firmware. The goal is to drive a fan and a heater and to read the temperature from a PT100 probe, remotely from PyMoDAQ, without changing the firmware for each new use case.

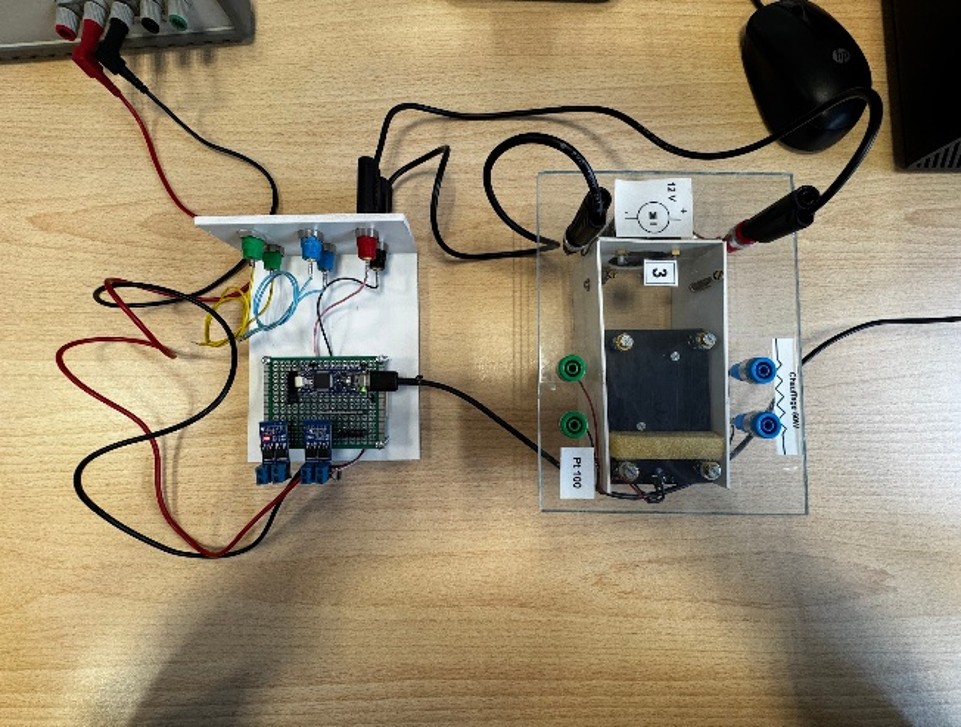

Arduino thermal test bench

The Arduino Nano ESP32 thermal test bench.

Hardware

The setup is built around the following components:

  • Arduino Nano ESP32 — main controller running at 3.3 V. It runs the Telemetrix firmware and communicates with PyMoDAQ over WiFi (TCP/IP).

  • 2 × XY-MOS choppers — MOSFET boards that modulate the power sent to the fan and to the heater through a PWM signal.

  • MAX31865 module — dedicated converter to read the PT100 probe; it communicates with the ESP32 over SPI in 3.3 V logic.

  • Fan — cools the device, driven in PWM on GPIO17.

  • PT100 probe — platinum resistance whose value varies with temperature (≈ 100 Ω at 0 °C), chosen for its precision and reliability in laboratory applications.

System architecture

The architecture follows a client / server model over WiFi.

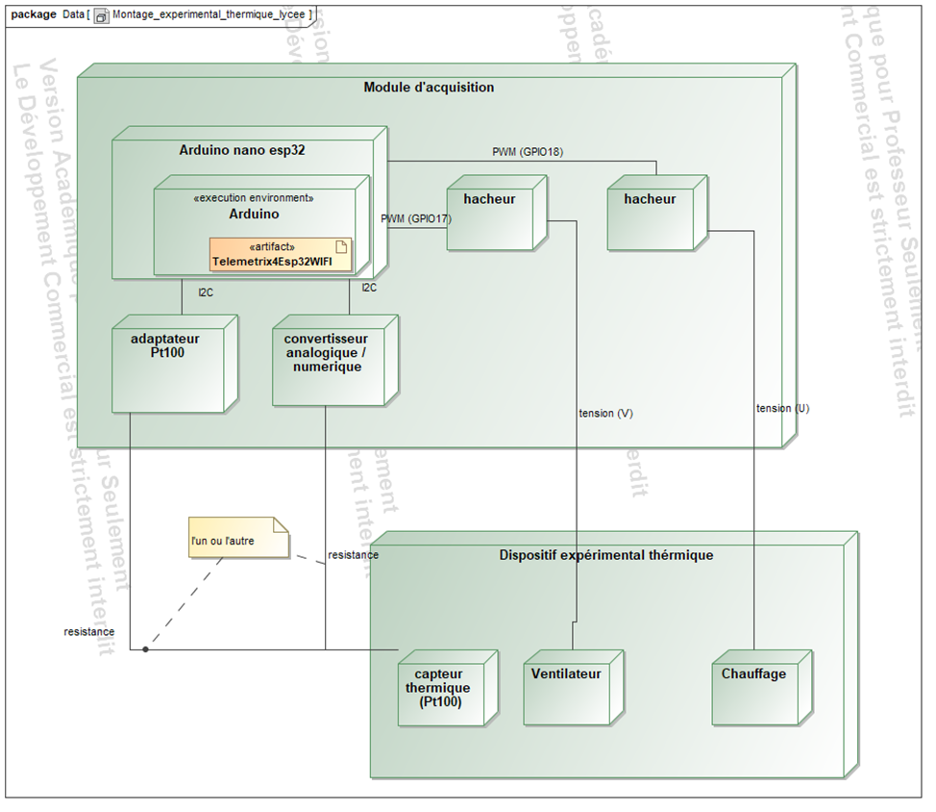

Components diagram

Components diagram.

Supervision (the computer) runs a Python virtual environment hosting PyMoDAQ:

  • DAQ_Move_FanHeater — sends the PWM set-points (0–100 %) to the fan and the heater through Telemetrix;

  • DAQ_0DViewer (PT100 / MAX31865) — receives and displays the measured temperature;

  • the telemetrix_aio_esp32 library — handles the asynchronous WiFi communication with the ESP32.

Hardware control (the Arduino Nano ESP32) runs the Telemetrix4ESP32WIFI firmware, which opens a TCP server on the local network (port 31336 by default). It receives the commands from the Python client and returns the acquired data:

  • PWM outputs: GPIO17 (fan) and GPIO18 (heater), through the XY-MOS choppers;

  • SPI interface: reading of the MAX31865 module to acquire the PT100 temperature.

Wiring

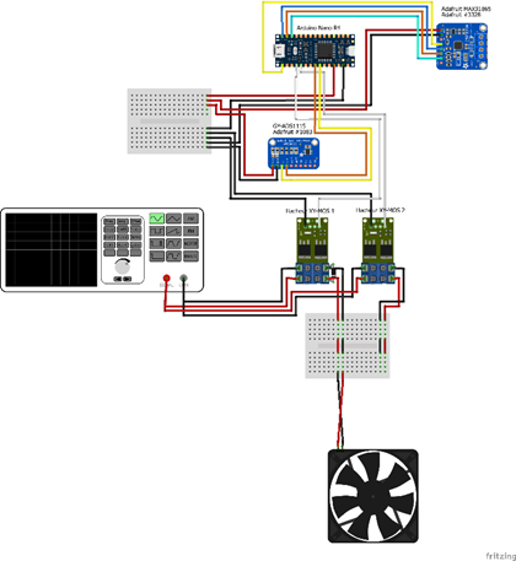

Wiring diagram

Wiring diagram of the Arduino setup.

MAX31865 module (SPI)

Signal

Arduino Nano ESP32

CLK

D13 (GPIO13)

SDO / MISO

D12 (GPIO12)

SDI / MOSI

D11 (GPIO11)

CS

D10 (GPIO10)

VIN

3.3 V

GND

GND

XY-MOS choppers (PWM)

  • Heater → GPIO18 (D9) — command from 0 to 100 %

  • Fan → GPIO17 (D8) — command from 0 to 100 %

Warning

Telemetrix ESP32 uses the GPIO numbers, not the labels printed on the board.
